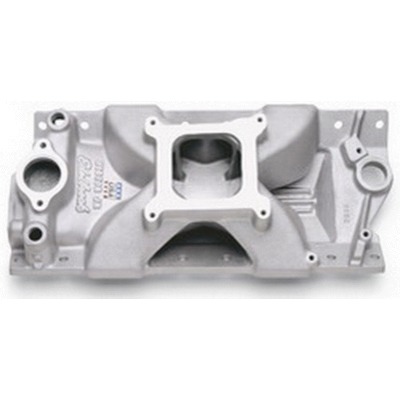

Edelbrock Intake Manifold 2975 Victor JR Small Block Chevy

Edelbrock Intake Manifold 2975 Victor JR Small Block Chevy

$307.99

SKU: 2975 Category:
  • Description
  • Shipping
  • Reviews (0)

Description

Edelbrock’s Victor Series intake manifolds set the standard for quality and performance in the industry. This Victor JR unit is designed for 262-400 C.I. small block Chevy V8s operating in the 3500-8000 rpm range. These versatile manifolds are excellent for many applications from high-performance street to drag and circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads.

All Victor JR manifolds offer extra material added for port matching and customizing, square bore carburetor flange, and water crossovers drilled and tapped for temp senders/bypass holes.

The low-profile of this intake works well in applications with minimal hood clearance and where 1″ or 2″ spacers can be used for performance tuning.

Right front has relief for dry sump pressure in lines.

Single Plane

Square Bore

Aluminum



Additional information

Weight 20.55 lbs
Dimensions 23.7 x 12.1 x 6.8 in
